OEM Tray Solutions

We have over 20 years experience in creating custom solutions.
When you work with InstruSafe®, you leverage our regulatory expertise, collaborate with our engineering and design teams who have end user experience, and watch it all come to life with our vast manufacturing capabilities. OEM trays can be designed for use with various sterilization cycles, with wrap or rigid containers.

We are the OEM tray manufacturer with FDA 510(k) clearances needed to get your project started or pair with your existing instrument validations.

See Our Process in Action:

Our Process

From a single instrument to a full set, delicate or robust; we will design and manufacture a tray to provide optimal protection while complying with FDA regulations and AAMI standards.

Concept

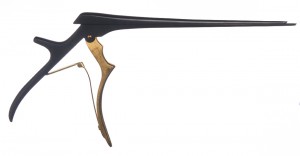

Kerrison_instrument photo_single

Project Goals

  • Our first step is to understand what your expectations and goals are, we then work with you to create a project outline and define our deliverables.
  • Provide us with a physical sample or 3D model of the instrument and we can get started.



Design

Sketch-lines_IN-5008_2.12.16

Collaboration

  • Our process can have as much or as little collaboration as you would like.
  • We can build your ideal tray together or you can rely on our industry experience and end user perspective to recommend a design and direction.











Development

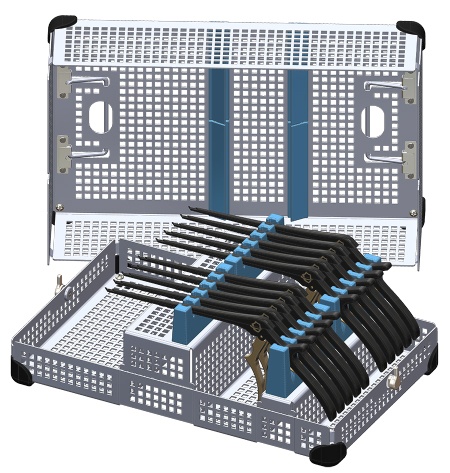

IN-5008 Marketing-rendering_s

Experience

  • Once we have a concept and design our engineers will develop 3D models used for virtual instrument fitting and checking design parameters. This step of the process is cost effective for modifying the design before we manufacture a prototype.
  • The silicone holders are designed specific to your instruments to provide 360 degrees of protection. Finished trays can be sterilized in legally marketed wrap or rigid containers.





 Completion

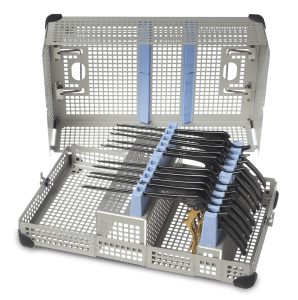

IN-5008

Exceeding Expectations

  • From the development process to a completed tray we are determined to outperform your expectations.
  • After your instruments are fitted and all design parameters are met, we manufacture the finished product. Each instrument has its own unique position in the tray.
  • Our trays are proudly made in the U.S.A.












Core Competencies

Customer Collaboration_Bar_2016

Every project is unique. Working together and understanding our customer’s goals is vital to meeting expectations.

Industry Knowledge_Bar_2016-01Our team has years of experience in sterile processing and the operating room. This helps provide a unique end user perspective when developing your project.

Quality Regulatory_Bar_2016Our facilities are ISO 13485 : 2012 Certified, we have CE certifications and an extensive portfolio of FDA 510(k) Clearances for various sterilization cycles.

Fast Lead Times_Bar_2016Our company culture enables us to establish goals to meet or exceed project timelines and turnaround quick manufacturing lead times.


FDA 510(k)

Designed to ensure optimal sterilization, InstruSafe OEM trays are cleared for various sterilization cycles in both wrap + rigid containers. Each tray meets our criteria to be covered by all our cleared cycles. This gives the customer a complete solution ready for market.

For more information about current sterilization validations go to our resources page here.




OEM Capabilities

See a list of our OEM capabilities here.



Get Exactly What You Need. Customizable Trays for Every Instrument.

Summit Medical, Inc. is a medical device manufacturer located in St. Paul, Minn. The company was founded in 1982 with the mission of developing, manufacturing and marketing products for microsurgery. Learn More
